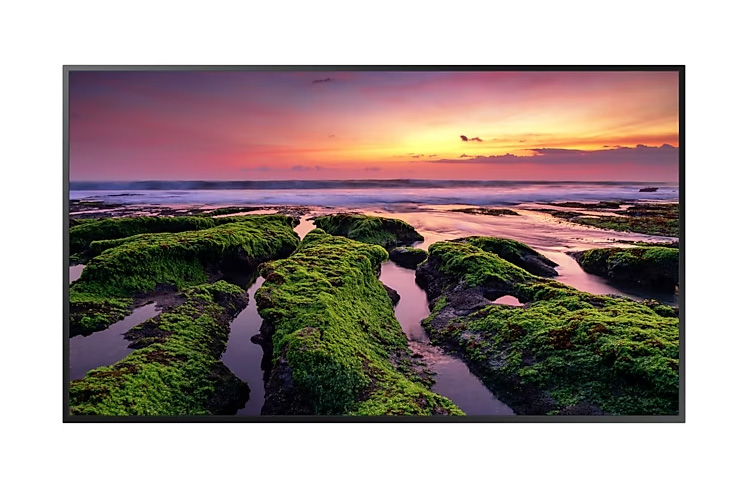

Samsung 4K Signage Display

Standard Version QBB Series

Brightness(Typ.) : 350 nits
Quantum Processor 4K (3,840 x 2,160)
Slim and symmetrical design
Support Vetical Mounting
Support MagicINFO CMS
3 years on-site warranty

Display Size:

43″ | 50″ | 55″ | 65″ | 75″ | 85″

43"50"55"65"75"85"

Display
Diagonal Size	43″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.245 x 0.245 (mm)
Brightness (Typ)	350nit
Contrast Ratio	4,000:1
Viewing Angle (H/V)	178/178
Response Time	8ms
Colour Gamut	72% (NTSC)
Glass Haze	2%
H-Scanning Frequency	30 ~ 81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48 ~ 75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7

Connectivity
HDMI In	3
DP In	No
DVI In	N/A
Version of HDMI	2
Version of DP	No
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
Power Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth®	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	132 W
Power Consumption (Sleep Mode)	0.5 W

Dimension
Set Dimension (WxHxD)	967.5 x 557.8 x 28.5 mm
Package Dimension (WxHxD)	1093 x 667 x 126 mm

Weight
Set Weight	8.8 kg
Package Weight	11.3 kg

Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	200 x 200 mm
Bezel Width	11.5mm (even)
Frame Material	Non-Glossy

Optional Feature
Mount	WMN4070SG
Stand	STN-L4355G

SoC (System on Chip)
OS Version	Tizen 7
Flash Memory Size	8GB

Eco
Energy Efficiency Class	N/A

Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1

Display
Diagonal Size	50″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.285 x 0.285 (mm)
Brightness (Typ)	350nit
Contrast Ratio	4,000:1
Viewing Angle (H/V)	178/178
Response Time	8ms
Colour Gamut	72% (NTSC)
Glass Haze	2%
H-Scanning Frequency	30 ~ 81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48 ~ 75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7

Connectivity
HDMI In	3
DP In	No
DVI In	N/A
Version of HDMI	2
Version of DP	No
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
Power Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth®	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	132 W
Power Consumption (Sleep Mode)	0.5 W

Dimension
Set Dimension (WxHxD)	1124.1 x 644.8 x 28.5 mm
Package Dimension (WxHxD)	1246 x 761 x 131 mm

Weight
Set Weight	11.8 kg
Package Weight	14.9 kg

Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	200 x 200 mm
Bezel Width	11.5mm (even)
Frame Material	Non-Glossy

Optional Feature
Mount	WMN-B50SC
Stand	STN-L4355C

SoC (System on Chip)
OS Version	Tizen 7
Flash Memory Size	8GB

Eco
Energy Efficiency Class	N/A

Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1

Display
Diagonal Size	55″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.315 x 0.315 (mm)
Brightness (Typ)	350nit
Contrast Ratio	4,000:1
Viewing Angle (H/V)	178/178
Response Time	8ms
Colour Gamut	72% (NTSC)
Glass Haze	2%
H-Scanning Frequency	30 ~ 81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48 ~ 75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7

Connectivity
HDMI In	3
DP In	No
DVI In	N/A
Version of HDMI	2
Version of DP	No
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
Power Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth®	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	154 W
Power Consumption (Sleep Mode)	0.5 W

Dimension
Set Dimension (WxHxD)	1237.9 x 708.8 x 28.5 mm
Package Dimension (WxHxD)	1403 x 835 x 148 mm

Weight
Set Weight	15.7 kg
Package Weight	19.9 kg

Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	200 x 200 mm
Bezel Width	11.5mm (even)
Frame Material	Non-Glossy

Optional Feature
Mount	WMN-B50SC
Stand	STN-L4355G

SoC (System on Chip)
OS Version	Tizen 7
Flash Memory Size	8GB

Eco
Energy Efficiency Class	N/A

Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1

Display
Diagonal Size	65″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.372 x 0.372 (mm)
Brightness (Typ)	350nit
Contrast Ratio	4,000:1
Viewing Angle (H/V)	178/178
Response Time	8ms
Colour Gamut	72% (NTSC)
Glass Haze	2%
H-Scanning Frequency	30 ~ 81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48 ~ 75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7

Connectivity
HDMI In	3
DP In	No
DVI In	N/A
Version of HDMI	2
Version of DP	No
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
Power Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth®	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	187 W
Power Consumption (Sleep Mode)	0.5 W

Dimension
Set Dimension (WxHxD)	1456.8 x 831.9 x 28.5 mm
Package Dimension (WxHxD)	1616 x 945 x 164 mm

Weight
Set Weight	21.5 kg
Package Weight	28 kg

Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	400 x 400 mm
Bezel Width	11.5mm (even)
Frame Material	Non-Glossy

Optional Feature
Mount	WMN-B50SC
Stand	STN-L6585C

SoC (System on Chip)
OS Version	Tizen 7
Flash Memory Size	8GB

Eco
Energy Efficiency Class	N/A

Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1

Display
Diagonal Size	75″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.429 x 0.429mm
Brightness (Typ)	350nit
Contrast Ratio	4,000:1
Viewing Angle (H/V)	178/178
Response Time	8ms
Colour Gamut	72% (NTSC)
Glass Haze	2%
H-Scanning Frequency	30 ~ 81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48 ~ 75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7

Connectivity
HDMI In	3
DP In	No
DVI In	N/A
Version of HDMI	2
Version of DP	No
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
Power Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth®	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	214.5 W
Power Consumption (Sleep Mode)	0.5 W

Dimension
Set Dimension (WxHxD)	1682.3 x 960.4 x 28.5 mm
Package Dimension (WxHxD)	1839 x 1113 x 180 mm

Weight
Set Weight	33.4 kg
Package Weight	41.3 kg

Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	400 x 400 mm
Bezel Width	13.4mm (even)
Frame Material	Non-Glossy

Optional Feature
Mount	WMN-B50SC
Stand	STN-L6585C

SoC (System on Chip)
OS Version	Tizen 7
Flash Memory Size	8GB

Eco
Energy Efficiency Class	N/A

Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1

Display
Diagonal Size	85″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.487 x 0.487mm
Brightness (Typ)	350nit
Contrast Ratio	4,000:1
Viewing Angle (H/V)	178/178
Response Time	10ms
Colour Gamut	72% (NTSC)
Glass Haze	2%
H-Scanning Frequency	30 ~ 81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48 ~ 75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7

Connectivity
HDMI In	3
DP In	No
DVI In	N/A
Version of HDMI	2
Version of DP	No
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
Power Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth®	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	231 W
Power Consumption (Sleep Mode)	0.5 W

Dimension
Set Dimension (WxHxD)	1904.3 x 1085.3 x 28.5 mm
Package Dimension (WxHxD)	2077 x 1222 x 210 mm

Weight
Set Weight	41.9 kg
Package Weight	53.9 kg

Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	600 x 400 mm
Bezel Width	13.9mm (even)
Frame Material	Non-Glossy

Optional Feature
Mount	WMN-B50SC
Stand	STN-L6585C

SoC (System on Chip)
OS Version	Tizen 7
Flash Memory Size	8GB

Eco
Energy Efficiency Class	N/A

Certification and Compliance
EMC	Class 1
Safety	60950-1, 62368-1
